Vehicle Car GPS Tracker 103B with Remote Control GSM Alarm SD Card
Overview:
This tracker GPS103B is a new product based on the GSM / GPRS network and GPS satellite positioning system. It provides multiple functions, such as security, positioning, surveillance, emergency alarms and so on.
Features:
Remote control with alarm on/off function.
GPS/GSM station positioning.
SMS/GPRS/internet network data transfer.
Point-to-point, point to group, group-to-group monitoring.
Continuously auto track upon different time and distance intervals.
Absolute street address with GSM network.
SD card for data logging.
Support 9-36V, so it can be installed on Bus, taxi, truck ,personal car, business car etc.
Maximum 5 cell phone numbers are allowed to admin the tracker.
Other functions: SOS, Geo-fence, movement alarm, over speed alarm, accident alarm, voice monitoring etc.
Cut off the oil and power system.
The on-line web page tracking software has one month free trial, after that it is about 10USD per year.
Optional accessories:
Shock sensor and siren.
Note: the optional accessories are not include, to purchase them, please visit the specific links.
Specifications:
| Content |
Specifications |
| Network |
GSM/GPRS |
| Band |
850/900/1800/1900Mhz |
| GSM/GPRS module |
SIM900B |
| GPS module |
SIRF3 chip |
| GPS sensitivity |
-159dBm |
| GPS accuracy |
5m |
| GPS start time |
Cold status 45s
Warm status 35s
Hot status 1s
|
| Voltage of car power system |
12V ~ 24V |
| Backup battery |
Rechargeable and changeable 3.7V 800mAh Li-ion battery
|
| Storage Temperature |
-40°C to +85°C |
| Operation Temperature |
-20°C to +65°C |
| Humidity |
5% ~ 95% non-condensing |
| Item size |
10.5 * 5.5 * 2.5cm (4.1 * 2.2 * 1.0in) |
| Item weight |
112g/4oz |
| Package size |
19.5 * 12.8 * 5.8cm (7.7 * 5 * 2.3in) |
| Package weight |
617g/1.4Lbs |

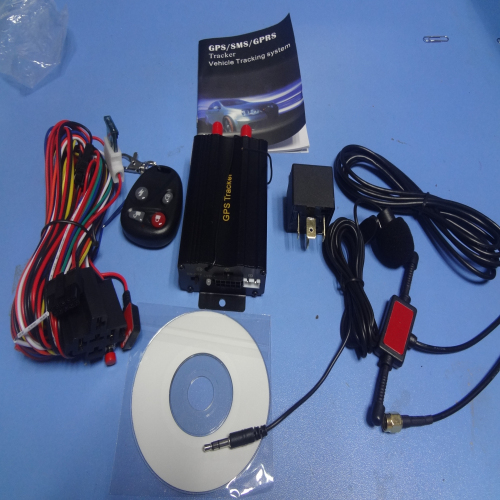

Item Includes:
1 * GPS tracker
1 * Remote control
1 * Microphone (1.5 meters)
1 * GSM antenna (3 meters)
1 * GPS antenna (3 meters)
1 * Relay (12V/40A to 24V/40A according to vehicles)
1 * Harness (10 Pin)
1 * User manual
1 * CD with software
